Event Triggers and Manual Event Publishing

Event-driven delivery lets Twinnoverse show a layout because something happened.

This is different from:

• a data source, which feeds ongoing dashboard values
• a playlist, which controls normal playback
• a scheduled campaign, which runs because a time window matches

The normal pattern is:

1. build the regular layout and playlist first
2. make sure the device already plays its baseline content
3. add event triggers only for temporary incident or intervention content

1. What an Event Trigger Is #

An event trigger is a rule that connects:

• a stable event key
• one saved layout
• a delivery mode
• a targeting rule
• a duration and priority policy

When an event is published with a matching event key, Twinnoverse creates device deliveries and the targeted readers show that layout.

The event trigger must already exist and be active before manual or API publishing can work.

2. Event Trigger vs Scheduled Campaign #

Use an event trigger when the content should appear only if a real event happens.

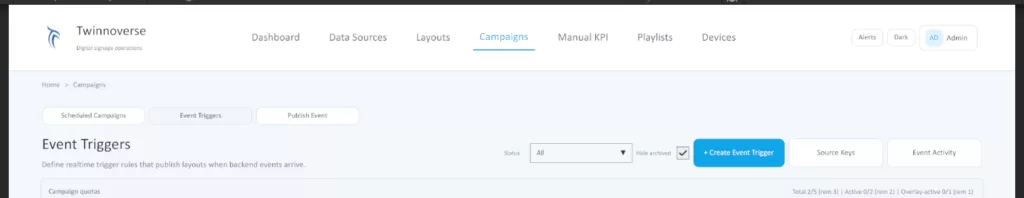

3. Where to Find It #

Open Campaigns and use these tabs:

• Scheduled Campaigns
• Event Triggers
• Publish Event

The Event Triggers tab defines the rules.
The Publish Event tab is where an admin can manually publish a one-time event for testing or operations.

4. Create an Event Trigger #

1. Open Campaigns -> Event Triggers.
2. Click Create Event Trigger.
3. Enter the trigger name.
4. Enter the event key.
5. Select the layout to display.
6. Choose the delivery mode:
   • fullscreen
   • overlay
7. Set the display duration.
8. Set the priority.
9. Choose the audience mode:
   • event_prodline
   • all_devices
   • selected_devices
10. Set maximum age, queue behavior, and cooldown.
11. Set status to active when ready.

The event key is the stable identifier that manual publish or an external system will use.

5. Event Trigger Settings #

Delivery Mode #

Use fullscreen for critical intervention screens.
Use overlay for notices that should not fully interrupt the baseline screen.

Duration #

Duration controls how long the event layout stays visible.

In the current product:

• duration must be greater than 0
• duration can be up to 3600 seconds
• default event duration is typically 15 seconds

Priority #

Priority helps Twinnoverse decide which event should win when several deliveries compete.

• higher number = higher priority
• readers sort event work by priority first
• if priorities tie, earlier occurrences are considered first

Reserve high priority for truly urgent events.

Audience Mode #

For most factory use cases, event_prodline is the safest default.

Maximum Age #

Maximum age controls how old an event is allowed to be before it should no longer display.

In the current implementation:

• maximum age must be greater than 0
• maximum age can be up to 86400 seconds
• default maximum age is 300 seconds

This helps prevent outdated incidents from appearing too late.

Queue Behavior #

Queue behavior controls what Twinnoverse reader app should do when a new event arrives while a device already has event work pending.

Available values:

• queue
• replace_lower_priority
• ignore_new

High-level meaning:

• queue keeps the normal pending queue behavior
• replace_lower_priority can replace still-pending lower-priority work
• ignore_new skips the new delivery if the device already has pending or claimed event work

Cooldown #

Cooldown helps prevent the same trigger from flooding devices repeatedly in a short time.

In the current implementation:

• cooldown can be 0 or higher
• cooldown can be up to 86400 seconds
• default cooldown is 0

6. Manual Publish #

Use manual publishing when an operator or admin needs to trigger an event without waiting for an external system.

1. Open Campaigns -> Publish Event.
2. Select an active event trigger.
3. Select the production line if the trigger uses event_prodline.
4. The bound layout preview loads.
5. Click widgets in the preview and enter the runtime payload values.
6. Enter the event context fields.
7. Review the preview.
8. Click Publish Event.

Important behavior:

• manual publish requires an active event trigger
• manual publish reuses the same event pipeline as API publishing
• manual publish publishes one event occurrence
• manual publish does not save a persistent Manual KPI snapshot

7. Required Manual Publish Fields #

The manual publish flow currently requires:

• subject_id

subject_type is used in the event context. If you leave it blank in the current manual publish flow, the UI falls back to operator.

subject_name is optional.

prodline_id matters when the trigger uses event_prodline audience mode. In that mode, it is operationally required if you want the event to route to the correct production-line devices.

The Occurred At timestamp:

• can be left alone and published with the current manual publish value from the UI
• must be handled carefully because an old timestamp can make the event expire sooner based on maximum age

8. API and Backend Publishing #

The same event can also be published from an external system through the event publish endpoint.

Typical use cases:

• PLC alarm connector
• MES exception workflow
• n8n automation
• quality incident system
• maintenance escalation bot
• Display operator or prodline achievements

The external publish flow is:

1. create and activate the event trigger in Twinnoverse
2. generate or manage an event source key
3. give the integration team the trigger’s event key
4. have the external system call the publish endpoint when the incident happens
5. include the correct event context and payload for the selected layout

The endpoint uses an event source token for authentication.

Supported auth styles:

• Authorization: Bearer <event-source-token>
• x-event-token: <event-source-token>

9. Payload Model #

Event payloads are layout-driven.

That means the payload shape is based on the widgets in the selected layout, not on a separate hardcoded schema per event key.

Practical meaning for end users:

• if the layout changes, the expected event payload changes too
• dynamic widgets need matching payload values
• runtime context widgets stay automatic and do not need manual payload input

This is why manual publish builds its editor from the selected layout.

10. Example Request Shape #

{
  "event_id": "evt-20260615-001",
  "event_key": "machine_alert",
  "occurred_at": "2026-06-15T13:27:46Z",
  "context": {
    "prodline_id": "LINE-1",
    "subject_type": "machine",
    "subject_id": "M-204",
    "subject_name": "Filler 204"
  },
  "payload": {
    "kpi": {
      "STATUS": {
        "value": "Stopped",
        "secondaryValue": "Maintenance Required"
      }
    }
  },
  "source_metadata": {
    "source": "factory-backend"
  }
}

{
  "event_id": "evt-20260615-001",
  "event_key": "machine_alert",
  "occurred_at": "2026-06-15T13:27:46Z",
  "context": {
    "prodline_id": "LINE-1",
    "subject_type": "machine",
    "subject_id": "M-204",
    "subject_name": "Filler 204"
  },
  "payload": {
    "kpi": {
      "STATUS": {
        "value": "Stopped",
        "secondaryValue": "Maintenance Required"
      }
    }
  },
  "source_metadata": {
    "source": "factory-backend"
  }
}

Notes:

• occurred_at is optional in the external publish endpoint
• if occurred_at is omitted, backend receive time is used
• context.prodline_id is required for meaningful event_prodline routing
• the exact payload shape depends on the selected layout widgets

11. What Happens on the TV #

When a matching event is accepted:

1. Twinnoverse creates one event occurrence.
2. Twinnoverse creates device-level deliveries for the target audience.
3. Readers poll for pending deliveries.
4. A reader claims a delivery.
5. The reader renders the event layout.
6. The reader acknowledges the result as displayed, failed, or expired.

Reader behavior in the current implementation:

• fullscreen events temporarily replace normal playback
• overlay events appear above the current content
• expired deliveries are discarded
• the local reader queue is bounded, so very old or excess deliveries can be dropped or expired

After the event finishes, normal playback continues.

12. Best Practices #

Do #

• use clear, stable event keys
• keep event layouts short and readable
• use event_prodline for line-specific incidents
• reserve high priority for truly urgent cases
• test with manual publish before connecting a backend source
• set maximum age carefully so outdated events do not appear too late

Avoid #

• using event triggers as a replacement for normal KPI playback
• publishing against inactive triggers
• using the same event key for unrelated trigger meanings
• setting a long duration for content that should only flash briefly
• publishing stale timestamps that can make the event expire immediately

13. Example Use Cases #

• machine stopped -> fullscreen alarm layout for the affected production line
• quality hold -> overlay notice on selected devices
• safety incident -> fullscreen notice on all devices
• supervisor broadcast -> manual event publish during a shift handover
